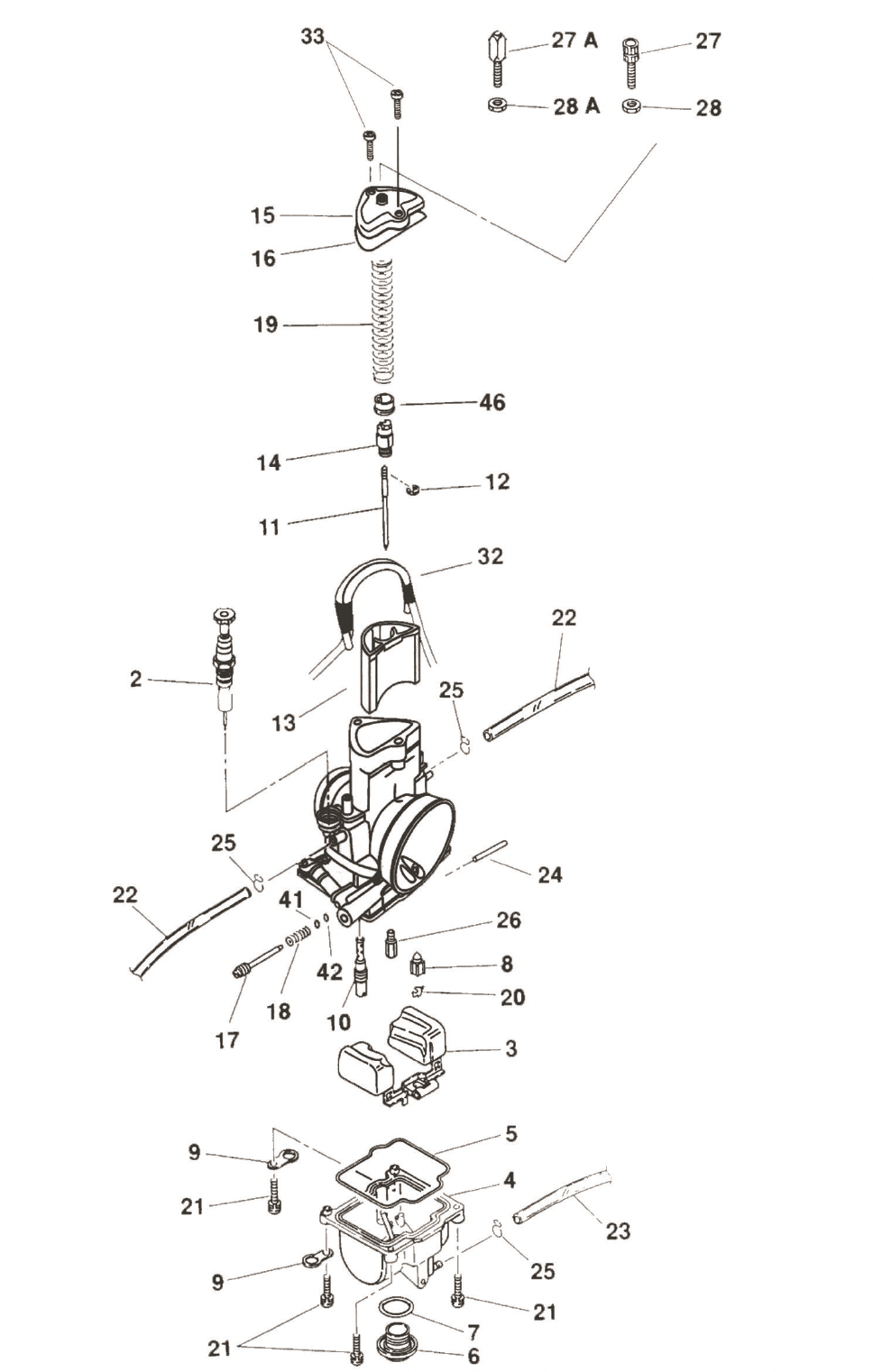

KEIHIN PWM 38

KEIHIN PWM 38


      09  Anchor Plate 16174-KZ4-6900 018-204

09 Anchor Plate 16174-KZ4-6900 018-204

PWM General: PWM Carburetors Anchor Plate 16174-KZ4-6900 018-204 for the Keihin PWM38 c..

$2.99

 * Jet Block  O-Ring, Keihin PWM Carburetor Not on diagram

* Jet Block O-Ring, Keihin PWM Carburetor Not on diagram

* Jet Block  O-Ring, PWK Short Body (SKU 022-032) (Not on diagram)* Jet Block  O-Ring, PWK..

$16.98

01. Carburetor rebuild kit 020-120

01. Carburetor rebuild kit 020-120

PWM General: PWM Carburetors Carburetor rebuild kit 020-120 for the Keihin PWM38 contai..

$45.10

02. Starter Valve Complete 1166-834-2200 018-201

02. Starter Valve Complete 1166-834-2200 018-201

PWM General: PWM Carburetors Starter Valve Complete 1166-834-2200 018-201 for the Keihi..

$29.99

03. Float 1052-856-2100 018-202

03. Float 1052-856-2100 018-202

PWM General: PWM Carburetors Float 1052-856-2100 018-202 for the Keihin PWM38 contains ..

$14.99

04. Float Bowl Complete 1050-898-2100 22.61 018-203

04. Float Bowl Complete 1050-898-2100 22.61 018-203

PWM General: PWM Carburetors Float Bowl Complete 1050-898-2100 22.61 018-203 for the Ke..

$29.00

05. Gasket, Float Bowl 16163-ND4-7510-M1 018-113

05. Gasket, Float Bowl 16163-ND4-7510-M1 018-113

PWM General: PWM Carburetors Gasket, Float Bowl 16163-ND4-7510-M1 018-113 for the Keihi..

$7.99

06. Plug Screw 16162-ND4-7511-M1 018-128

06. Plug Screw 16162-ND4-7511-M1 018-128

PWM General: PWM Carburetors Plug Screw 16162-ND4-7511-M1 018-128 for the Keihin PWM38 ..

$12.99

07. O-Ring, Plug Screw 16173-001-0040 018-664

07. O-Ring, Plug Screw 16173-001-0040 018-664

PWM General: PWM Carburetors O-Ring, Plug Screw 16173-001-0040 018-664 for the Keihin P..

$1.49

08. Float Valve Complete 1062-814-2100 018-504

08. Float Valve Complete 1062-814-2100 018-504

PWM General: PWM Carburetors Float Valve Complete 1062-814-2100 018-504 for the Keihin ..

$15.55

10. Slow Jet N424-21

10. Slow Jet N424-21

PWM General: PWM Carburetors Slow Jet N424-21 for the Keihin PWM38 contains GENUINE Kei..

$5.99

11. Jet Needle N427-48

11. Jet Needle N427-48

PWM General: PWM Carburetors Jet Needle N427-48 for the Keihin PWM38 contains GENUINE K..

$12.99

12. Clip, Jet Needle 16115-169-0040 018-033

12. Clip, Jet Needle 16115-169-0040 018-033

PWM General: PWM Carburetors Clip, Jet Needle 16115-169-0040 018-033 for the Keihin PWM..

$1.99

13.a. Throttle valve 4.0 N502-31C00 018-252 Richest

13.a. Throttle valve 4.0 N502-31C00 018-252 Richest

PWM General: PWM Carburetors Throttle valve 4.0 N502-31C00 018-252 Richest for the Keih..

$63.40

13.b. Throttle valve 4.0 N502-31C00 018-252 Richest

13.b. Throttle valve 4.0 N502-31C00 018-252 Richest

PWM General: PWM Carburetors Throttle valve 4.0 N502-31C00 018-252 Richest for the Keih..

$63.40

13.c. Throttle valve 6.0 (Std) N502-31E00 018-254

13.c. Throttle valve 6.0 (Std) N502-31E00 018-254

PWM General: PWM Carburetors Throttle valve 6.0 (Std) N502-31E00 018-254 for the Keihin..

$63.40

13.d. Throttle valve 7.0 N502-31F00 018-255

13.d. Throttle valve 7.0 N502-31F00 018-255

PWM General: PWM Carburetors Throttle valve 7.0 N502-31F00 018-255 for the Keihin PWM38..

$63.40

13.e. Throttle valve 8.0 N502-31G00 018-256 Leanest

13.e. Throttle valve 8.0 N502-31G00 018-256 Leanest

PWM General: PWM Carburetors Throttle valve 8.0 N502-31G00 018-256 Leanest for the Keih..

$63.40

14. Cable Holder 1101-805-2000 018-205

14. Cable Holder 1101-805-2000 018-205

PWM General: PWM Carburetors Cable Holder 1101-805-2000 018-205 for the Keihin PWM38 co..

$10.48

15. Top 1030-872-2000 018-206

15. Top 1030-872-2000 018-206

PWM General: PWM Carburetors Top 1030-872-2000 018-206 for the Keihin PWM38 contains GE..

$51.00

16. Gasket, Top 1202-863-6000 018-207

16. Gasket, Top 1202-863-6000 018-207

PWM General: PWM Carburetors Gasket, Top 1202-863-6000 018-207 for the Keihin PWM38 con..

$10.99

17. Air Adjust Screw W1446-231-9900 018-089

17. Air Adjust Screw W1446-231-9900 018-089

PWM General: PWM Carburetors Air Adjust Screw W1446-231-9900 018-089 for the Keihin PWM..

$5.99

18. Spring, Air Adjust Screw W1711-416-9900 018-090

18. Spring, Air Adjust Screw W1711-416-9900 018-090

PWM General: PWM Carburetors Spring, Air Adjust Screw W1711-416-9900 018-090 for the Ke..

$2.99

19. Spring, Throttle valve 1290-920-2000 018-531

19. Spring, Throttle valve 1290-920-2000 018-531

PWM General: PWM Carburetors Spring, Throttle valve 1290-920-2000 018-531 for the Keihi..

$5.12

20. Clip, Float Valve 0405-019-1000 018-674

20. Clip, Float Valve 0405-019-1000 018-674

PWM General: PWM Carburetors Clip, Float Valve 0405-019-1000 018-674 for the Keihin PWM..

$3.49

21. Choose M4x14 socket head screw in fastenersOR Screw, Float Bowl 93500-04014-1H 018-209

21. Choose M4x14 socket head screw in fastenersOR Screw, Float Bowl 93500-04014-1H 018-209

PWM General: PWM Carburetors Choose M4x14 socket head screw in fastenersOR Screw, Float..

$0.99

22. Bowl, Vent Pipe 95003-07048-31 018-535

22. Bowl, Vent Pipe 95003-07048-31 018-535

PWM General: PWM Carburetors Bowl, Vent Pipe 95003-07048-31 018-535 for the Keihin PWM3..

$3.99

23. Overflow Pipe 95003-05033-31 018-538

23. Overflow Pipe 95003-05033-31 018-538

PWM General: PWM Carburetors Overflow Pipe 95003-05033-31 018-538 for the Keihin PWM38 ..

$3.99

24. Float Pin W9525-25250 018-670

24. Float Pin W9525-25250 018-670

PWM General: PWM Carburetors Float Pin W9525-25250 018-670 for the Keihin PWM38 contain..

$2.99

25. Clip W9535-35000 018-098

25. Clip W9535-35000 018-098

PWM General: PWM Carburetors Clip W9535-35000 018-098 for the Keihin PWM38 contains GEN..

$0.99

26. Main Jet 99101-357

26. Main Jet 99101-357

PWM General: PWM Carburetors Main Jet 99101-357 for the Keihin PWM38 contains GENUINE K..

$5.99

27.a. Cable Adjuster W9581-59250 018-005

27.a. Cable Adjuster W9581-59250 018-005

PWM General: PWM Carburetors Cable Adjuster W9581-59250 018-005 for the Keihin PWM38 co..

$2.99

27.b. Cable Adjuster W9581-59200 018-306

27.b. Cable Adjuster W9581-59200 018-306

PWM General: PWM Carburetors Cable Adjuster W9581-59200 018-306 for the Keihin PWM38 co..

$2.04

28.a. Nut, Cable Adjuster 0208-007-1100 018-544

28.a. Nut, Cable Adjuster 0208-007-1100 018-544

PWM General: PWM Carburetors Nut, Cable Adjuster 0208-007-1100 018-544 for the Keihin P..

$0.99

28.b. Nut, Cable Adjuster W1793-130-9900 018-008

28.b. Nut, Cable Adjuster W1793-130-9900 018-008

PWM General: PWM Carburetors Nut, Cable Adjuster W1793-130-9900 018-008 for the Keihin ..

$0.99

31. Cable Sealing Cap (Collar) 16118-166-0040 018-002

31. Cable Sealing Cap (Collar) 16118-166-0040 018-002

PWM General: PWM Carburetors Cable Sealing Cap (Collar) 16118-166-0040 018-002 for the ..

$3.03

32. Bowl Vent Pipe Complete 16199-KZ3-6900 018-537

32. Bowl Vent Pipe Complete 16199-KZ3-6900 018-537

PWM General: PWM Carburetors Bowl Vent Pipe Complete 16199-KZ3-6900 018-537 for the Kei..

$10.99

33. Screw (Top) 93500-04012-1H 018-211

33. Screw (Top) 93500-04012-1H 018-211

PWM General: PWM Carburetors Screw (Top) 93500-04012-1H 018-211 for the Keihin PWM38 co..

$0.99

41. Washer 16085-KG8-9010-M1 018-208

41. Washer 16085-KG8-9010-M1 018-208

PWM General: PWM Carburetors Washer 16085-KG8-9010-M1 018-208 for the Keihin PWM38 cont..

$0.99

42. O-Ring 16075-KG8-9010-M1 021-043

42. O-Ring 16075-KG8-9010-M1 021-043

PWM General: PWM Carburetors O-Ring 16075-KG8-9010-M1 021-043 for the Keihin PWM38 cont..

$0.99

46. Collar 1118-929-7000 018-550

46. Collar 1118-929-7000 018-550

PWM General: PWM Carburetors Collar 1118-929-7000 018-550 for the Keihin PWM38 contains..

$6.49

Showing 1 to 41 of 41 (1 Pages)
